Why New Jersey chimneys leak — crown, cap, flashing, freeze-thaw
The stain on the ceiling is never where the leak is. Water travels before it drops, and a chimney gives it four separate ways in — each with a different fix and a different cost.
The short answer
Water gets into a chimney in four places, and telling them apart is most of the repair. A failed CROWN — the slab on top — lets water down between the liner and the brick. A missing or corroded CAP lets rain fall straight down the flue. Failed FLASHING where the stack passes through the roof runs water into the roof deck, which is why that stain appears a foot or two away from the chimney breast rather than on it. And saturated MASONRY wicks water through the wall, after which freeze-thaw does the rest. Each has a different fix and a different cost, and the pattern of the stain narrows it down but only the roof settles it.

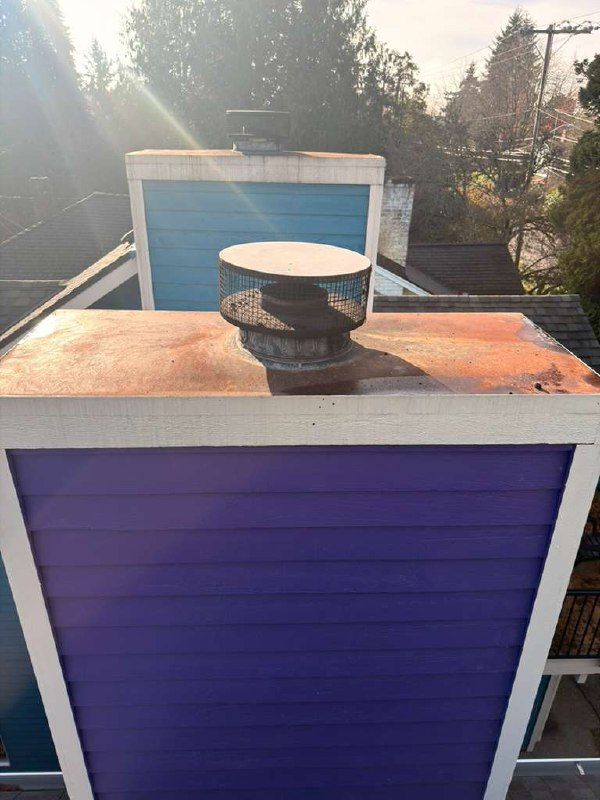

The crown — the part you cannot see from the ground
The crown is the slab cast over the top of the chimney to shed water away from the flue. On a great deal of New Jersey housing it was poured thin, flush with the brick, and without a drip edge — so instead of dripping clear, water runs straight off it down the face of the stack. Add several decades of freeze-thaw and there are hairline cracks in it. From that point every rainstorm puts water into the top of the masonry, where it runs down between the liner and the brick, out of sight, until the face starts spalling. Sealing a crown while the cracks are still hairline is a small job; once the face of the stack has started spalling it is not. It goes unnoticed rather than unattended — there is no angle from the garden that shows you the top of your own chimney.
The cap, and why the fixing matters more than the cap
A cap keeps rain, snow and animals out of the flue and helps stop downdraft pushing smoke back into the room. The ones that fail are the ones held on by friction: a nor'easter lifts them, and the next thing in the flue is water. On an exposed roof — much of Hudson and Monmouth County qualifies — a locking cap is the one that stays on. Sizing matters too: an undersized cap restricts draw and an oversized one does not seal, so a cap fitted to the nearest stock size rather than to the flue is a problem waiting to happen even when it stays put.
- Rain and snow straight down an open flue is the fastest way to ruin a liner
- Friction-fit caps do not survive serious wind repeatedly
- A cap sized to the nearest stock size rather than to the flue restricts draw or fails to seal
Flashing — the leak that does not look like a chimney leak
Where the stack passes through the roof there are two pieces of metal doing the work: base flashing turned up the masonry, and counter flashing cut into a mortar joint and folded down over it. When somebody has "fixed" a chimney leak with a tube of roof sealant, this is almost always what they sealed, and it is why it came back a season later. Sealant buys a year or two; counter flashing cut properly into the joint lasts decades. The diagnostic tell is where the stain appears: on the chimney breast points at crown or masonry, a foot or two away from it points at flashing, because the water is running down the roof deck before it drops.
Saturated masonry and the freeze-thaw cycle
New Jersey gets the full cycle. Water gets into the mortar, freezes, expands, and opens the joint a little more each winter. Caught early that is repointing, and repointing sound brick buys decades. Left long enough, the brick face itself begins to spall, and at that point repointing is good mortar around bad brick. Two things make it worse: masonry that never fully dries between storms — which is why coastal towns take it hardest — and being further inland and higher, where the number of freeze-thaw cycles a year is simply greater. Both are why the same chimney fails at different speeds in different parts of the same state.
What to do with a stain you have just noticed
Photograph it, note where it is relative to the chimney breast, and note whether it appeared after rain, after snow melt, or in humid weather with no rain at all. That last one usually means condensation rather than a leak, which is a different conversation entirely. Then get somebody on the roof, because all four causes live up there and none of them can be told apart from a bedroom. Anybody who quotes a chimney leak repair without going up is quoting a guess.
Related questions
Can a chimney leak be fixed in winter?
Cap and flashing work, usually yes. Crown work and repointing need temperatures that let the material cure, so mid-winter is often the wrong time to start them in New Jersey — and a temporary cover through to spring is a legitimate answer rather than a fudge.
My chimney smells in summer. Is that the same problem?
Often, yes. That smell is creosote plus moisture, and it usually means water is getting in at the crown or the cap. A sweep helps for a few weeks, but it comes back every humid week until the water is stopped.
Is a leaning chimney urgent?
Treat it as urgent. A visible lean, a step crack running through several courses, or brick that has moved out of line are structural rather than cosmetic. Stop using the fireplace and get somebody to look.
Want somebody to actually look at it?
Everything above is how this kind of work usually goes. What it is not is an assessment of your chimney, because nobody has seen your chimney.
